Rolija HID Prox Card Reader

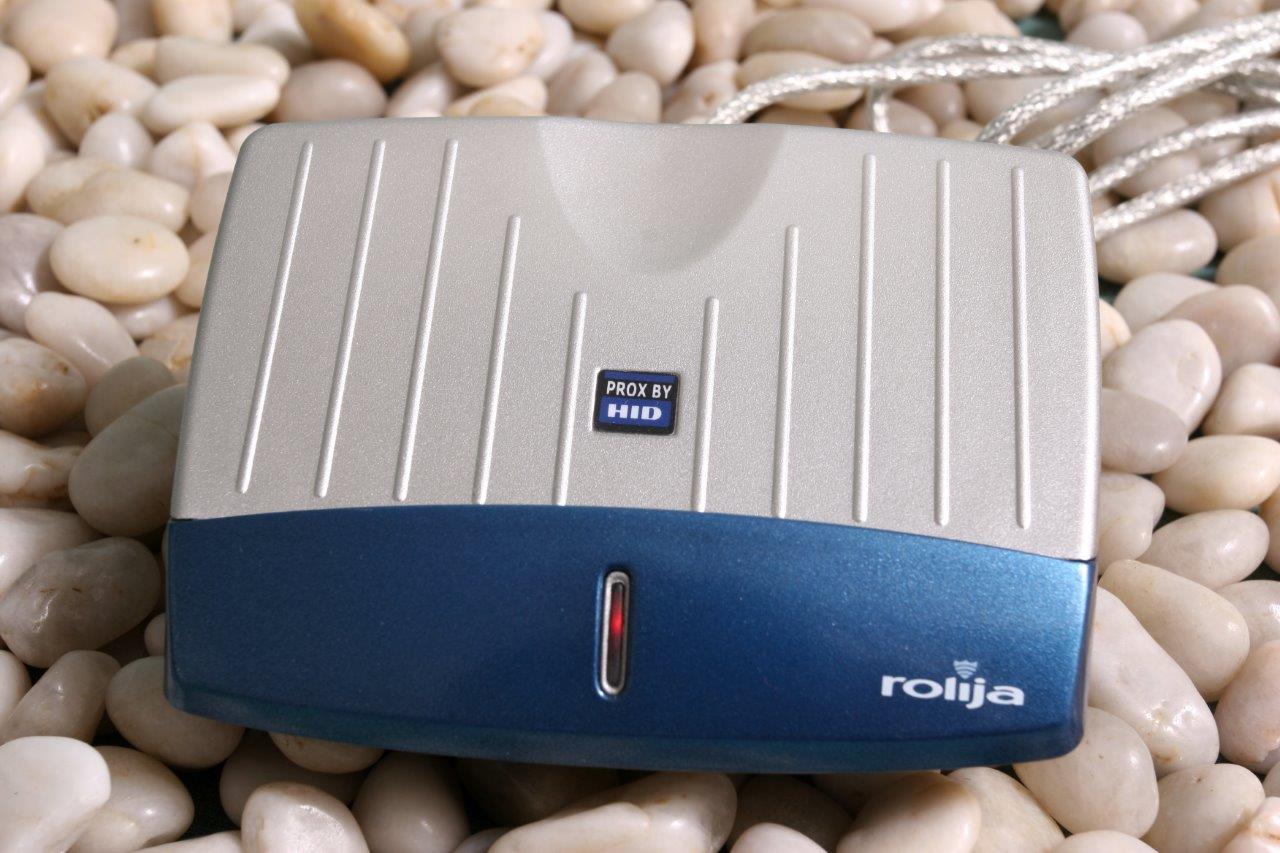

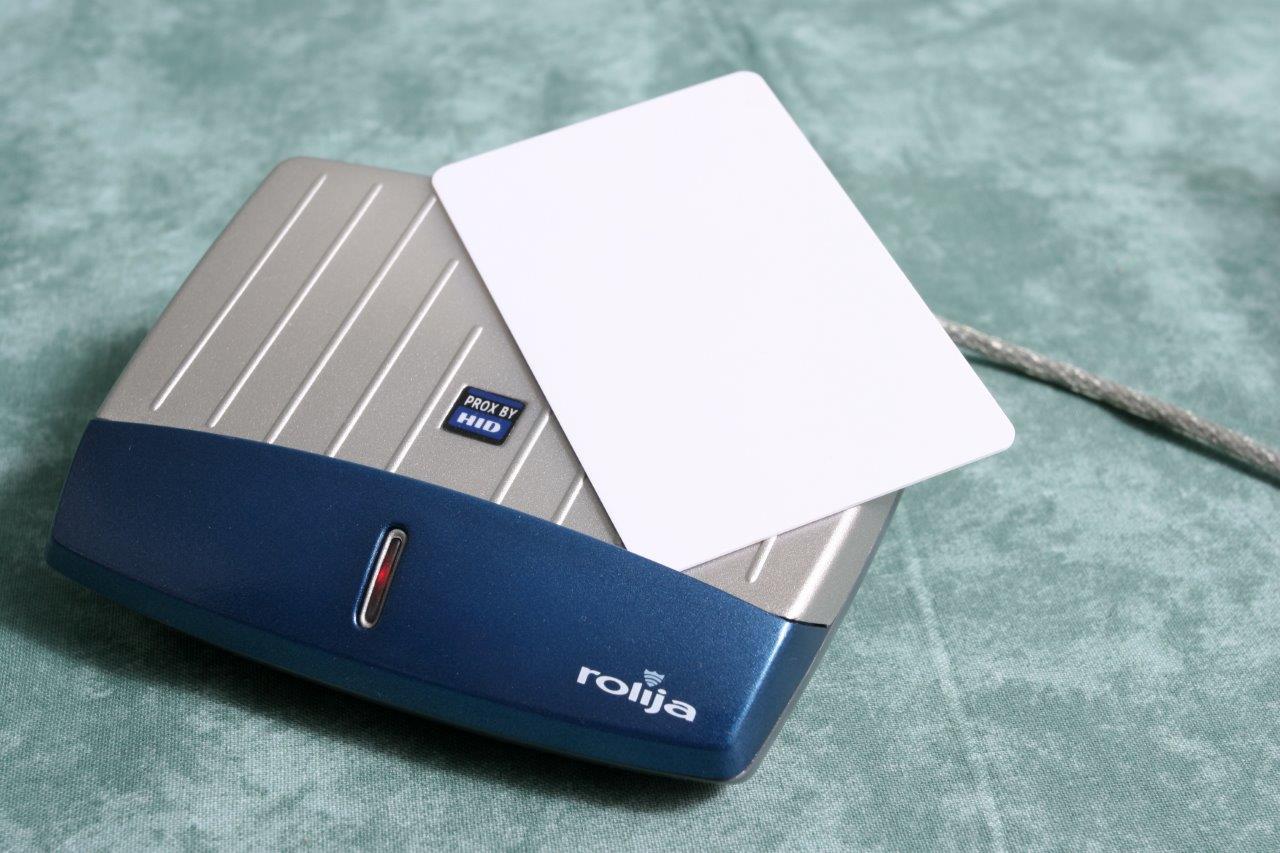

The ANJARY ROLIJA HID Prox Reader interfaces directly to the PC and enables the communication to occur between the PC and the HID Prox cards. The reader allows the reading of any of the HID Prox card; enabling unlimited flexibility to the use of the Prox card within any require application. The ROLIJA Prox reader is an out of the box solution for all the interaction requirements with the HID Prox card. The reader has a modern design making it a feature on any desk. This design allows the card to sit stable on the reader, alternatively the card can be badged for the instantaneous reading of the Card Id.

Rolija iClass Card Reader
Rolija Indala Card Reader

Applications
.

The ROLIJA Prox reader is designed to integrate with any PC based program. Applications include PC and network access systems, Time and Attendance systems, Secure Payment system, etc. Any application where the Prox card requires interaction. The USB version plugs into any USB port and emulates a keyboard by sending the card Id as keystrokes to the cursor location on the PC.

Contact
.

Sales
Contact for price list and ordering procedures.

Enquires
Contact our Enquires deck for more information.

Specifications
.

Specifications






RS232
USB

Power

Powered via the PS2 Keyboard port.

Supplied via the USB cable.

Dimensions

80mm x 117mm x 37mm

80mm x 117mm x 37mm

Interface

 RS232 (Serial DB9 connector) USB

Operating Humidity

 0 to 95% relative humidity non condensing 0 to 95% relative humidity non condensing

Operating Temperature

 -5° to 65° C -5° to 65° C

Card Interface frequency

 13.56 MHz 13.56 MHz

Indicator

 Bi-colour LED> Bi-colour LED
